Simple Drive power supply

Recommended Posts

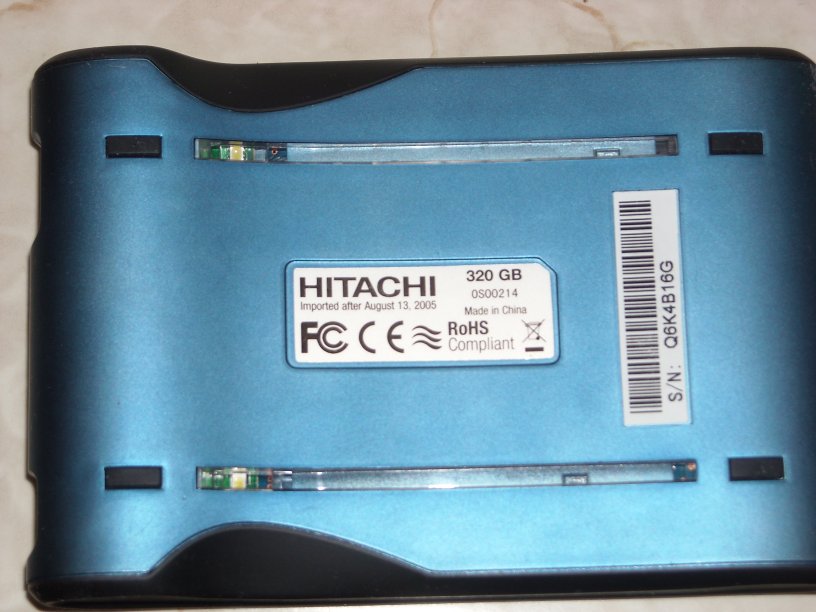

I have a Hitachi  mini usb 'simple drive' that has an auxiliary power input jack (circled).

But I don't know what voltage is required, probably 5v or 12v.

Can anyone help?



Share this post


Link to post
Share on other sites

Most likely 5V, as it is an auxiliary power supply only, and USB is 5V.
I have two similar units, and mini USB ( as opposed to micro ) can usually supply enough juice to operate.
I don't even know where my auxiliary power units are; I don't think I've ever used them.

Share this post


Link to post
Share on other sites
5 hours ago, MigL said:

Most likely 5V, as it is an auxiliary power supply only, and USB is 5V.

USB (v2.0 standard), directly from computer, can give device just 500 mA per port.

https://en.wikipedia.org/wiki/USB#Power

0.5 A * 5 V = 2.5 Watts per port.



"Hard Drive Power Consumption

Solid State Drive SSD 0.6 to 2.8 W

2.5" Hard Disk Drive HDD 0.7 to 3 W

3.5" Hard Disk Drive HDD 6.5 to 9 W"



USB (v3.0 standard) can give up to 900 mA per port.

https://en.wikipedia.org/wiki/USB_3.0#Power_and_charging





Edited by Sensei

Share this post


Link to post
Share on other sites

Sorry, my mistake.
I understood it to be an external optical drive, not a hard drive ( I was in a hurry )

External mechanical hard drives come in two types, 2.5 inch, which can be powered by a USB port as they require only 5V, and 3.5 inch which require both 5V and 12V, so an external 12V supply is mandatory.

So, yeah, you'll need a 12V adapter at about 0.7 amp ( it just drives the motors, not the logic circuits )
Again sorry for my mistake; hope you didn't go out and buy a 5V adapter.

Incidentally when I upgraded all my laptops to SSDs I put all their mechanical hard drives in external enclosures ( less than $10 apiece, SATA to USB3, from China, through EBay ).
I now have 9 of them ranging in size from 500GB to 2TB.
Plus 3 of the 3.5 inch externals ( all 2TB ) but I'll be damned if I can find the power adapters for them  :P .
