Rate of dissolution


  • Please log in to reply
22 replies to this topic

#1 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 28 December 2016 - 03:34 PM

Hello,



Suppose there's a spherical solid of initial radius R. This solid when dropped in a certain liquid dissolves at the rate r. By rate of dissolution I mean the loss of the volume of the solid in unit time. By using derivatives, we can represent it as-

r=\frac{dV}{dt}=\frac{4\pi}{3}\frac{dR^3}{dt}

where dV is change in volume, which is directly proportional to the cube of the change in radius of the spherical solid represented as dR^3.

Since the solid moves downward it experiences drag. By Stoke's Law, drag is -

F_D=6\pi \mu Rv

where \mu is the dynamic viscosity of the liquid, v is the solid's downward velocity.

But, here downward velocity v of the solid is a function of the drag force, which is again a function of the radius.

If we apply Newton's Laws,

Force on the solid in the downward direction = Weight of solid - Drag force

ma=mg-F_D

where m is the solid's mass.

But mass also depends upon radius.

All the variables seem inter-related. I want to reduce the whole situation into an equation but cannot proceed beyond this.

Please suggest what and how to proceed.


Edited by Sriman Dutta, 28 December 2016 - 04:49 PM.

  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#2 studiot

studiot

    Genius

  • Senior Members
  • 6,739 posts
  • LocationSomerset, England

Posted 28 December 2016 - 04:07 PM

Hello,



Suppose there's a spherical solid of initial radius R. This solid when dropped in a certain liquid dissolves at the rate r. By rate of dissolution I mean the loss of the volume of the solid in unit time. By using derivatives, we can represent it as-

r=\frac{dV}{dt}=\frac{4\pi}{3}\frac{dR^2}{dt}

where dV is change in volume, which is directly proportional to the square of the change in radius of the spherical solid represented as dR^2.

Since the solid moves downward it experiences drag. By Stoke's Law, drag is -

F_D=6\pi \mu Rv

where \mu is the dynamic viscosity of the liquid, v is the solid's downward velocity.

But, here downward velocity v of the solid is a function of the drag force, which is again a function of the radius.

If we apply Newton's Laws,

Force on the solid in the downward direction = Weight of solid - Drag force

ma=mg-F_D

where m is the solid's mass.

But mass also depends upon radius.

All the variables seem inter-related. I want to reduce the whole situation into an equation but cannot proceed beyond this.

Please suggest what and how to proceed.







But mass also depends upon radius.



Yes mass is a better quantity than volume to work with, both for the mechanics of viscous flow and the chemistry of reaction rate kinetics.



Each of this will lead to a differential equation.



These differential equations will be coupled or simultaneous and you solve them as such.



For the chemical kinetics of solution look at the Law of Mass Action



https://www.google.c...953.HxTKyxqO_ak


Edited by studiot, 28 December 2016 - 04:08 PM.

  • 0

#3 swansont

swansont

    Evil Liar (or so I'm told)

  • Moderators
  • 36,711 posts
  • LocationWashington DC region

Posted 28 December 2016 - 07:29 PM

You probably want to apply the chain rule. dV/dt = dV/dR * dR/dt

Then everything properly depends on R.
  • 0

Minutus cantorum, minutus balorum, minutus carborata descendum pantorum          To go to the fortress of ultimate darkness, click the up arrow ^

I am not a minimum-wage government shill.             Forget it, Jake — it's Crackpottown.

My SFN blog: Swans on Tea












#4 John Cuthber

John Cuthber

    Chemistry Expert

  • Resident Experts
  • 13,879 posts
  • LocationEngland

Posted 28 December 2016 - 08:15 PM

Hello,



Suppose there's a spherical solid of initial radius R. This solid when dropped in a certain liquid dissolves at the rate r. By rate of dissolution I mean the loss of the volume of the solid in unit time. By using derivatives, we can represent it as-

r=\frac{dV}{dt}=\frac{4\pi}{3}\frac{dR^3}{dt}

where dV is change in volume, which is directly proportional to the cube of the change in radius of the spherical solid represented as dR^3.

Since the solid moves downward it experiences drag. By Stoke's Law, drag is -

F_D=6\pi \mu Rv

where \mu is the dynamic viscosity of the liquid, v is the solid's downward velocity.

But, here downward velocity v of the solid is a function of the drag force, which is again a function of the radius.

If we apply Newton's Laws,

Force on the solid in the downward direction = Weight of solid - Drag force

ma=mg-F_D

where m is the solid's mass.

But mass also depends upon radius.

All the variables seem inter-related. I want to reduce the whole situation into an equation but cannot proceed beyond this.

Please suggest what and how to proceed.

I suggest that you give up and proceed with something else.



Why do you think that dissolution is related to drag forces?

I can make a mixture of hexane and tetrachloromethane that has the same density as water. By adding other materials I can fine-tune the viscosity as well

The drag forces on a grain of salt will be the same in both water as in this mixture

But the salt will dissolve in the water and yet it will not dissolve in the mixture.


  • 0
What's this signature thingy then? Did you know Santa only brings presents to people who click the + sign? -->

#5 DrKrettin

DrKrettin

    Molecule

  • Senior Members
  • 595 posts

Posted 29 December 2016 - 09:35 AM

I suggest that you give up and proceed with something else.



Why do you think that dissolution is related to drag forces?





I would have assumed that the dissolution is proportional to the surface area and not very related to drag forces.


  • 0

κατθάνοισα δὲ κείσῃ οὐδέ ποτα / μναμοσύνα σέθεν /  ἔσσετ' οὐδὲ †ποκ'†ὔστερον· οὐ / γὰρ πεδέχῃς βρόδων / τῶν ἐκ Πιερίας·


#6 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 29 December 2016 - 09:41 AM

Hi, I got some equations.... Please see whether they are right or not.



Force on the solid in the downward direction = Weight of the solid - Drag force - Buoyant force

ma=mg-6\pi \mu Rv - V\rho_l g

where m is mass of the solid and \rho_l is the density of the liquid

m=V\rho_s, where \rho_s is the solid's density and V is its volume. Substituting this in the above equation,

V\rho_s a = V\rho_s g - 6\pi\mu Rv- V\rho_l g ,  v is the solid's downward velocity

\frac{4}{3}\pi R^3\rho_s a = \frac{4}{3}\pi R^3\rho_s g - 6\pi\mu Rv - \frac{4}{3}\pi R^3\rho_l g

Since both sides are differentiable by dt, and using the definition k=\frac{4}{3}\pi, we get-

k\rho_s\frac{d(R^3a)}{dt}= k\rho_sg \frac{dR^3}{dt}-6\pi\mu\frac{d(Rv)}{dt}-k\rho_lg\frac{dR^3}{dt}


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#7 sethoflagos

sethoflagos

    Baryon

  • Senior Members
  • 156 posts
  • LocationLagos, Nigeria

Posted 29 December 2016 - 12:30 PM

Since thermal energy is generally liberated during dissolution, the problem is one of 'simultaneous heat and mass transfer'. The calculations become rather involved due to multiple (diffusive and convective) mechanisms being involved, and are not really amenable to this back of an envelope approach.



Rogers and Mayhew "Thermodynamic and Transport Properties of Fluids" was our undergrad reference text on this area, and is more readable than many. But it is still a substantial tome and the maths is quite challenging.



Dissolution generally kicks off with



 https://en.wikipedia...thur_Amos_Noyes



https://en.wikipedia...fer_coefficient



https://en.wikipedia...-factor_analogy



The Stokesian regime problem setup you're attempting is actually more complex than assumption of a turbulent flow regime where complete mixing of the continuous phase may reasonably be assumed.


  • 0

#8 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 29 December 2016 - 12:59 PM

If the solid dissolves in the liquid without undergoing any chemical reaction, why shall be there thermal energy? Is the energy coming from the fact that drag acts as a resistance to the downward motion of the solid?

Moreover will there be any Magnus effect?


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#9 John Cuthber

John Cuthber

    Chemistry Expert

  • Resident Experts
  • 13,879 posts
  • LocationEngland

Posted 29 December 2016 - 01:14 PM

If the solid dissolves in the liquid without undergoing any chemical reaction, why shall be there thermal energy? Is the energy coming from the fact that drag acts as a resistance to the downward motion of the solid?

Moreover will there be any Magnus effect?

 If the solid dissolves in the liquid without undergoing any chemical reaction, why shall be there thermal energy?
Because the forces holding the molecules together in the crystal are different from those that exist ins solution.

Is the energy coming from the fact that drag acts as a resistance to the downward motion of the solid?
No.

As has already been pointed out several times, it has nothing to do with drag forces.

Moreover will there be any Magnus effect?

As has already been pointed out several times, it has nothing to do with drag forces.


  • 0
What's this signature thingy then? Did you know Santa only brings presents to people who click the + sign? -->

#10 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 29 December 2016 - 01:43 PM

OK fine. It has been mentioned earlier that dissolution is not depended upon drag. In the equation, I haven't defined rate of dissolution with respect to drag. Instead the drag force depends upon the radius of the solid, which depends upon rate of dissolution and time.

 r=\frac{dV}{dt}=\frac{4\pi}{3}\frac{dR^3}{dt}


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#11 John Cuthber

John Cuthber

    Chemistry Expert

  • Resident Experts
  • 13,879 posts
  • LocationEngland

Posted 29 December 2016 - 09:42 PM

The dissolution rate almost certainly depends on the radius but on so many other things that it's not important.
Why are you trying to force a relationship where none exists?


  • 0
What's this signature thingy then? Did you know Santa only brings presents to people who click the + sign? -->

#12 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 30 December 2016 - 05:29 AM

I am not trying to build a relationship between dissolution rate and drag. What I want is to get a model which shows how the drag forces change when a solid moving down gets dissolved in the liquid.


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#13 Bender

Bender

    Protist

  • Senior Members
  • 752 posts

Posted 1 January 2017 - 12:19 AM

Are you asuming r to be constant? In that case, finding R(t) is easy. Filling it in your equation with a and v gives at first glance a straightforward differential equation.

I would, however, asume r to depend on the surface area of the sphere, which even makes it easier, because in that case R declines linearly in time.
  • 0

#14 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 1 January 2017 - 04:54 AM

r is constant but R is not.

How do you relate r to surface area??


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#15 Bender

Bender

    Protist

  • Senior Members
  • 752 posts

Posted 1 January 2017 - 10:13 AM

Since dissolution happens at the surface, I would asume that it is related to the surface area, so r=constant.R^2

Edited by Bender, 1 January 2017 - 10:13 AM.

  • 0

#16 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 1 January 2017 - 10:32 AM

r=4\pi R^2 ?

But this rate must be time derivative.....here it is not so.


Edited by Sriman Dutta, 1 January 2017 - 10:32 AM.

  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#17 studiot

studiot

    Genius

  • Senior Members
  • 6,739 posts
  • LocationSomerset, England

Posted 1 January 2017 - 03:08 PM

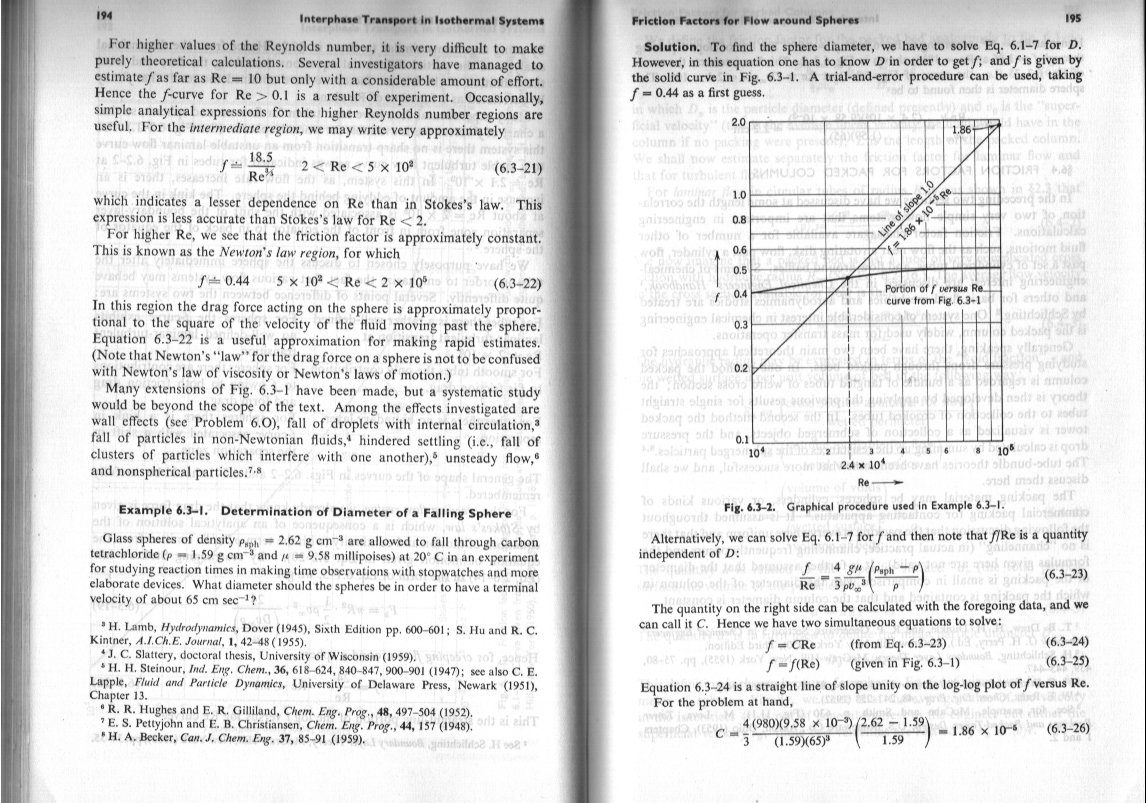

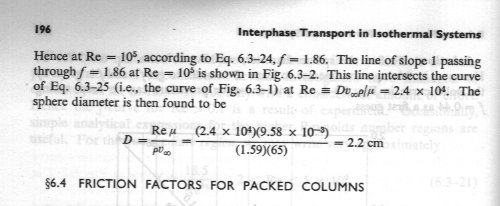

Here is some information about falling spheres and rates of solution of substances and the equations that govern these.



One thing to note is that there may not be a 'closed form' equation that says



answer = .......



This is a very common situation in Engineering.



We have to home in on the answer via an iterative or graphical process.



Please also not the rate of solution rate constant can depend upon the condition of the substance massive, finely divided etc.














  • 0

#18 sethoflagos

sethoflagos

    Baryon

  • Senior Members
  • 156 posts
  • LocationLagos, Nigeria

Posted 1 January 2017 - 08:25 PM

As a first pass, you could assume that the rate of dissolution etc is slow enough, and the sphere is small enough, for it to be falling at it's terminal velocity per Stokes' law (which is valid for low Reynolds numbers, and well dispersed particles).



The equations for drag and terminal velocity can be found here https://en.wikipedia...iki/Stokes'_law.



As DrKrettin states, the rate of dissolution is proportional to the surface area of the sphere, and therefore varies with R^2. Specifically, you can look at the Noyes-Whitney equation at https://en.wikipedia...thur_Amos_Noyes.



You can rearrange this to express for rate of change of radius with time.



But you need values for the diffusion coefficient and diffusion layer thickness.The ratio of these is called the mass transfer coefficient, and is ideally determined by experiment.



Alternatively, a rough and ready correlation between mass transfer coefficient and friction factor can be found from the Chilton-Colburn analogy (see https://en.wikipedia...factor_analogy)



The 'f' correlates with the drag force found previously (I suspect that f may be equal to drag coefficient in this case, but life's too short to work that one out for you just now).



Anyway, you get a relationship between mass transfer coefficient and velocity. Since you already have a relationship between terminal velocity and R, this, in turn, gives you a relationship between mass transfer coefficient and sphere radius.



Et voila, this should end up in a simple ODE for R vs time.


  • 0

#19 Bender

Bender

    Protist

  • Senior Members
  • 752 posts

Posted 1 January 2017 - 11:17 PM

r=4\pi R^2 ?
But this rate must be time derivative.....here it is not so.

Fill it in into your equation from the first post:
r=4\pi R^2=c \cdot \frac {dR^3}{dt}
Or in short:
R^2=c \cdot R^2 \cdot \frac {dR}{dt}
After integration :
R=R_0 - c \cdot t

Where c are arbitrary constants, unless you want to calculate it for a specific situation, in which case the best way to determine c is probably experimentally.

Also, since the rate is negative, c has to be negative.

Qualitative prediction: speed will increase exponentially to terminal velocity. Meanwhile terminal velocity decreases, eventually causing the sphere to slow down.

Edited by Bender, 1 January 2017 - 11:25 PM.

  • 0

#20 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 583 posts
  • LocationKolkata, India

Posted 2 January 2017 - 06:01 AM

I'm going through all the things........Just need some time. :-)


  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle
