mattiao 2 Posted November 5, 2020 Share Posted November 5, 2020 Dear all, I have a system of N non-linear equations in N variables and 1 parameter. The system has solutions until the parameter is less than a certain value. I am interested in finding the maximum value of the parameter for which the system has solutions. Could you help me to find a way to do that? I have tried to use the parameter as an extra variable of the system and to add one more equation, but I struggle to find the new equation... I try to give you an example in case I have not been clear enough: −x^2 + 10x − 1/2y^2 + 6y − K = 0 −2x^2 + 20x + 3/2y^2 − 18y = 0 How do I find the greatest K for which this system has a valid solution? Note that this is only an example, I am looking for a general rule... Link to post Share on other sites

joigus 443 Posted November 5, 2020 Share Posted November 5, 2020 No general rule in non-linear equations. This system is particularly simple because it's a 'scrambled' set of quadratic equations in x and y. You can un-scramble it easily, find the conditions for K, and overlap. Link to post Share on other sites

Sensei 1065 Posted November 5, 2020 Share Posted November 5, 2020 Wolfram Alpha output: https://www.wolframalpha.com/input/?i=+−x^2+%2B+10x+−+1%2F2y^2+%2B+6y+−+K+%3D+0+and+−2x^2+%2B+20x+%2B+3%2F2y^2+−+18y+%3D+0 Link to post Share on other sites

mattiao 2 Posted November 5, 2020 Author Share Posted November 5, 2020 2 hours ago, Sensei said: Wolfram Alpha output: https://www.wolframalpha.com/input/?i=+−x^2+%2B+10x+−+1%2F2y^2+%2B+6y+−+K+%3D+0+and+−2x^2+%2B+20x+%2B+3%2F2y^2+−+18y+%3D+0 Thanks Sensei, the result is correct (K=125/3), but I have't clear how you found it. Can you explain, please? Link to post Share on other sites

joigus 443 Posted November 5, 2020 Share Posted November 5, 2020 (edited) 13 minutes ago, mattiao said: Can you explain, please? Because, as I told you, the non-linear system, \[− x^2 +10x − \frac{1}{2} y^2 +6y − K=0 \] \[− 2 x^2 +20x+ \frac{3}{2} y^2 − 18y=0\] decouples into, \[5y^{2}\text{−}60y+4K=0\] \[5x^{2}-50x+3K=0\] Which is trivial: \[x=\frac{50\pm\sqrt{2500-60K}}{10}\] \[y=\frac{60\pm\sqrt{3600-80K}}{10}\] Only solvable under the bounds, \[K<\frac{250}{6}=\frac{125}{3}=41.\overline{6}\] \[K<\frac{360}{8}=45\] The lowest upper bound being, \[K<\frac{125}{3}\] Edited November 5, 2020 by joigus Link to post Share on other sites

mattiao 2 Posted November 5, 2020 Author Share Posted November 5, 2020 ok, very good, but now let's complicate things... This is the analytical solution of this system. In my case I have much more complex systems and I can't analytically solve, so I use a Newton-Raphson method. I found I can get the same result (K=125/3), adding a third equation to the system and using k as a variable: df1/dx - df2/dx = 0 (the derivate respect x of the first equation minus the derivate respect x of the second equation) This makes sense, because it imposes that the intersections of 2 surfaces represented by the first 2 equations of the system with the plane xy, are tangent and this is the limit for which the system can have a solution. Please ask if I have not been clear enough... now, considering that my system has 3 equation (like said above that posted was only an easy example to explain the post), which equation should I use as forth one to find the maximum parameter for my system? Link to post Share on other sites

joigus 443 Posted November 5, 2020 Share Posted November 5, 2020 1 hour ago, mattiao said: I found I can get the same result (K=125/3), adding a third equation to the system and using k as a variable: df1/dx - df2/dx = 0 (the derivate respect x of the first equation minus the derivate respect x of the second equation) Can you be a bit more explicit about what you're doing there? Are those partial derivatives, implicit (as in \( \frac{d}{dx}=\frac{\partial}{\partial x}+\frac{dy}{dx}\frac{\partial}{\partial y} \). Do they involve K as a function of x and y, or as an independent variable? There are several ways to take the derivative with respect to x, and some of them are sorely wrong. E.g., are you considering, \[x,\:y\left(x\right),\:K\left(x,y\right)\] or, \[K,\:y\left(x,K\right),\:x\left(K\right)\] perhaps? And why would you want to involve a further equation which is implied by the previous two and contains, if anything, less information? I'm missing something in your argument. By the way, I made a mistake. It's, \[K\leq\frac{125}{3}\] Link to post Share on other sites

mattiao 2 Posted November 5, 2020 Author Share Posted November 5, 2020 (edited) I am considering K as an independent variable, so our system becomes: \[ F(x, y, k) = 0 \] The third equation is the Jacobian of the first equation respect the first variable (x) minus the Jacobian of the second equation rw respect again the first variable (x). So for the example I put above, it becomes: \[ (-2x+10) - (-4x+20) = 0 \] The reason why add this 3rd equation is that solving this system with Newton-Rapson I got the result I was looking for. Otherwise I don't see how to get it using numerical methods... P.S.: sorry but I am not able to write formulas in the correct way in this forum, please give me some advice... Edited November 5, 2020 by mattiao Problem with formulas Link to post Share on other sites

joigus 443 Posted November 5, 2020 Share Posted November 5, 2020 8 hours ago, mattiao said: P.S.: sorry but I am not able to write formulas in the correct way in this forum, please give me some advice... Edited 8 hours ago by mattiao Here you have some help: 8 hours ago, mattiao said: The third equation is the Jacobian of the first equation respect the first variable (x) minus the Jacobian of the second equation rw respect again the first variable (x). The Jacobian is a matrix, not a simple derivative. I still don't understand why you want to apply derivatives when your equation can be solved exactly. Neither do I understand how an equation derived from the previous one gives you more information. 10 hours ago, joigus said: I'm missing something in your argument. I'm still missing it. I'm sorry. Maybe somebody else can help. Link to post Share on other sites

mattiao 2 Posted November 6, 2020 Author Share Posted November 6, 2020 (edited) Hi Joigus, sorry if I haven't been clear enough, I'll try to explain better. 8 hours ago, joigus said: I still don't understand why you want to apply derivatives when your equation can be solved exactly. It's true that the equation in the example can be solved exactly, but as I explained, that was just an example, my system is done be 4 equations and it can't be solve analitically, it has to be solve with numeri methods (Newton-Rapson in my case). I try to change example, anyway keeping just 2 equations to start: \[ \begin{cases} 30sin(x/4)+100sin(x/10)-x − 1/2y^2 + 6y −k= 0 \\ 60sin(x/4)+200sin(x/10)-2x + 3/2y^2 − 18y = 0 \end{cases} \] 8 hours ago, joigus said: Neither do I understand how an equation derived from the previous one gives you more information. I am trying to use k as a new variable and to add a condition of uniqueness in the 3rd equation. Because the number of solutions of a system of 2 equations can be N if the equations intersects in the XY plane N time, 0 if they don't intersect or 1 if they are tangent, I am trying to impose the tangency condition. Therefore as 3rd equation I use the difference of the derivate of the 1st equation and the second equation respect the same variable. For example in the first system I proposed it worked with the derivate on X, instead in this last example I have to derivate respect Y. In both cases anyway with this approach, I get the correct solution. Have I been more clear now? Edited November 6, 2020 by mattiao Link to post Share on other sites

joigus 443 Posted November 6, 2020 Share Posted November 6, 2020 (edited) 3 hours ago, mattiao said: Because the number of solutions of a system of 2 equations can be N if the equations intersects in the XY plane N time, 0 if they don't intersect or 1 if they are tangent, Mmmm. I think I know what you mean now. When you said you obtained the solution you were looking for, did you mean (in the 1st, simpler, example)?: \[ x = 5 \left( 1 ± \sqrt{1- \frac{3}{125} k} \right) \] \[ y = 6 \left( 1 ± \sqrt{ 1- \frac{1}{45} k} \right) \] \[ K ≤ \frac{125}{3} \] Can you show me in more detail how you got to that by your method of adding a third equation? The equation you propose is, \[\left(-2x+10\right)-\left(-4x+20\right)=0\] That gives \( x = 5 \) as only solution, and I don't see how that relates to what you're looking for. Your 'tangency' idea got me confused, especially in combination with the Jacobian. Maybe I can't help you after all, but I think I'm closer to understand you and hopefully offer you some insight. Edited November 6, 2020 by joigus edit latex Link to post Share on other sites

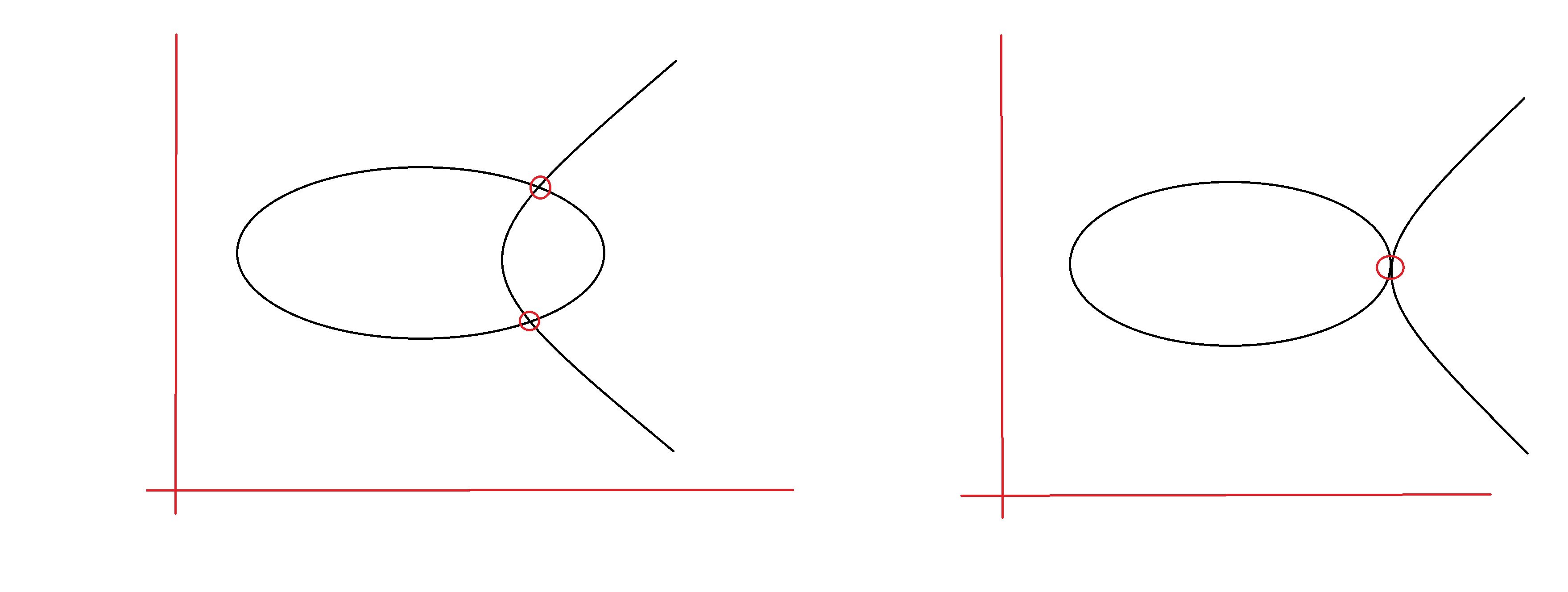

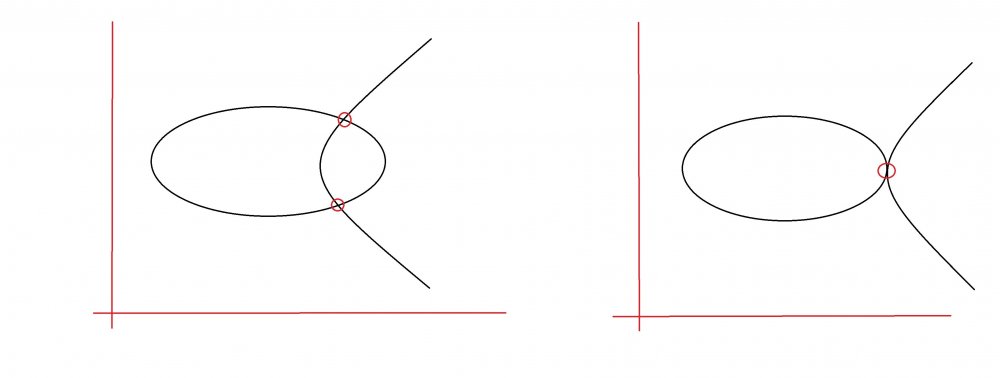

mattiao 2 Posted November 6, 2020 Author Share Posted November 6, 2020 Yes joigus, I think we start to be on the right way. So, as you already understood, my system becomes: \[ \begin{cases} −x^2 + 10x − 1/2y^2 + 6y − K = 0 \\ −2x^2 + 20x + 3/2y^2 − 18y = 0 \\ (−2x+10)−(−4x+20)=0 \end{cases} \] And like you said, from the 3rd equation I get \(x=5\). Substituting this in the 2nd equation, we get \(y=4.367\) or \(y=7.633\). Finally substituting x and y in the 1st equation, we get \(k=41.667=\frac{125}{3} \) . So for this example imposing the 3rd equation as the difference of the derivates respect x, works. You can try to do the same with the second example, but in this case you have to derivate respect y to obtain the 3rd equation. Solving the system, you will get: \[x=1.6626 \\ y=6.0 \\ k=45.0\] that is exactly again the maximum value of k that we were looking for. The reason is that the 3rd equation adds the condition of tangency between the 2 intersection of the surfaces represented by the first 2 equations with the plane xy. So , because they are tangent, the solution of the system that is the intersections of the previous curves, can only be 1. I show you both cases in the following picture: So, they case on the left that has 2 solutions is for \(k<125/3\) and the case on the right with just 1 solution (tangency between the 2 curves is \(k=125/3\). If we have \(k>125/3\), the 2 curves doesn't intersect and there isn't any solution. 1 Link to post Share on other sites

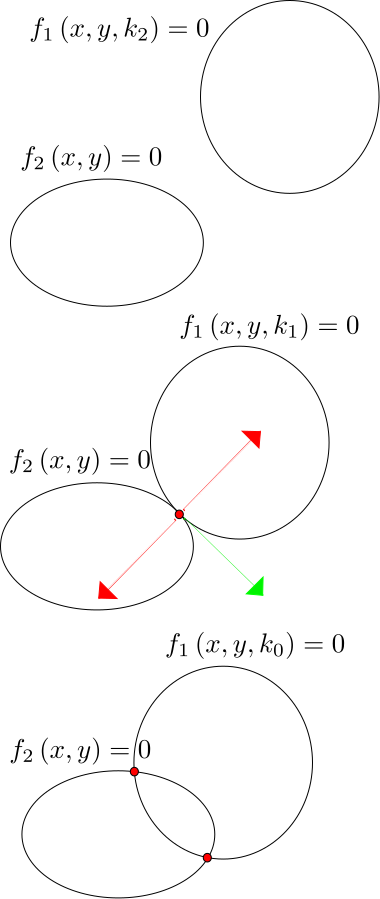

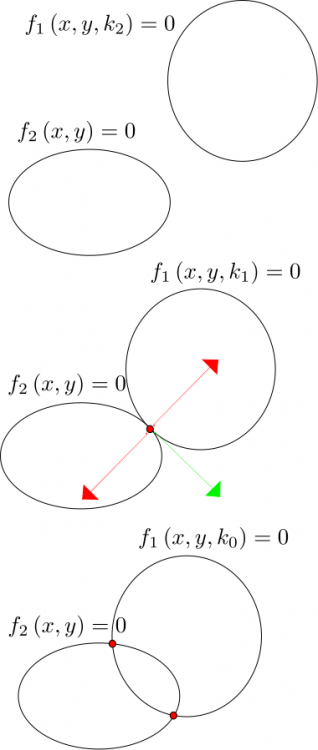

joigus 443 Posted November 6, 2020 Share Posted November 6, 2020 1 hour ago, mattiao said: So, they case on the left that has 2 solutions is for k<125/3 and the case on the right with just 1 solution (tangency between the 2 curves is k=125/3 . If we have k>125/3 , the 2 curves doesn't intersect and there isn't any solution. OK. I see what you mean much more clearly now. There's still something you've understood that I haven't. Problem is I don't have much time now, but I promise to get back. This was gonna be my drawing: There's an idea that maybe could work for the general case. I don't know. I'll get back to you ASAP. It's to do with the green and red arrows in the drawing. The co-tangential condition can be written as, \[\boldsymbol{\nabla}f_{1}\wedge\boldsymbol{\nabla}f_{2}=0\] It involves the determinant, \[\left|\begin{array}{cc} \frac{\partial f_{1}}{\partial x} & \frac{\partial f_{1}}{\partial y}\\ \frac{\partial f_{2}}{\partial x} & \frac{\partial f_{2}}{\partial y} \end{array}\right|\] It could work in the general case. I don't know. The problem is \( k \) doesn't appear there. Let's keep talking. No time now. Link to post Share on other sites

mattiao 2 Posted November 6, 2020 Author Share Posted November 6, 2020 Joigus, I think using \( \boldsymbol{\nabla}f_{1}\wedge\boldsymbol{\nabla}f_{2}=0\) as 3rd equation of the system, is the correct solution! I have tried with several systems of 2 equations and it always working! In the next days I will try also with systems with more than 2 equations... I will keep you update, thanks. Link to post Share on other sites

joigus 443 Posted November 6, 2020 Share Posted November 6, 2020 3 hours ago, mattiao said: Joigus, I think using ∇f1∧∇f2=0 as 3rd equation of the system, is the correct solution! I have tried with several systems of 2 equations and it always working! In the next days I will try also with systems with more than 2 equations... I will keep you update, thanks. Yes, please, keep me informed. I'm glad to have you here, proposing interesting problems. Welcome to the forums! Link to post Share on other sites

mattiao 2 Posted November 11, 2020 Author Share Posted November 11, 2020 (edited) Dear Joigus, I have been thinking and working at this topic and I have done some progresses! I have extended your intuition to systems with more equations. So if we have a system of 3 unknows and 1 parameter of which we want to find the higher value that makes the system solvable, we can use the parameter as an unknows and add a 4th equation. To write the 4th equation we can consider the gradient of the other 3 equations. We can do \( \vec{v_{1}} = \boldsymbol{\nabla}f_{1}\wedge\boldsymbol{\nabla}f_{2} \), so \( \vec{v_{1}} \) is the vector tangent to the curve created by the intersection of \(f_{1}\) with \(f_{2}\). In the same way we can do \( \vec{v_{2}} = \boldsymbol{\nabla}f_{2}\wedge\boldsymbol{\nabla}f_{3} \) to get the vector tangent to the curve created by the intersection between \(f_{2}\) and \(f_{3}\). Now to have just 1 solution of the system, we need that those 2 curves are tangent between them, therefore we can impose \( \vec{v_{1}} \wedge \vec{v_{2}} = 0 \) as 4th equation of the system. I have tried with many systems and it works!!! Let me know if what I have done until here is clear... because now I would like to do the same with more equations in the system, but it looks quite difficult! Do you have any idea how to continue? Edited November 11, 2020 by mattiao 1 Link to post Share on other sites

joigus 443 Posted November 11, 2020 Share Posted November 11, 2020 Thanks for keeping me informed, Mattiao. 41 minutes ago, mattiao said: Let me know if what I have done until here is clear... because now I would like to do the same with more equations in the system, but it looks quite difficult! Do you have any idea how to continue? Yes, I think I do. I've got a couple of questions for you, though. Are you always working with one parameter, \( k \), and arbitrary number of equations? Are the equations always linear in \( k \)? I'll get back to you as soon as I've got more time to spare. Well done! Link to post Share on other sites

mattiao 2 Posted November 11, 2020 Author Share Posted November 11, 2020 56 minutes ago, joigus said: Are you always working with one parameter, \( k \), and arbitrary number of equations? Yes, now I would like to solve a system with 4 variables and 1 parameter, so in total 4 equations + the equation to close it maximizing the parameter. 58 minutes ago, joigus said: Are the equations always linear in \( k \)? Unfortunately no... but if it helps we can consider it linear as first step and once solved, to move on non-linear. Link to post Share on other sites

joigus 443 Posted November 14, 2020 Share Posted November 14, 2020 On 11/11/2020 at 12:48 PM, mattiao said: Yes, now I would like to solve a system with 4 variables and 1 parameter, so in total 4 equations + the equation to close it maximizing the parameter. Try with, \[\det\left(\frac{\partial f_{i}}{\partial x_{j}}\right)=0\] On 11/11/2020 at 12:48 PM, mattiao said: Unfortunately no... but if it helps we can consider it linear as first step and once solved, to move on non-linear. Now that I think about it, the fact that the \( k \)'s don't appear linearly is not that bad. You would obtain critical values for such non-linear functions \( K\left( k \right) \). So it's a matter of re-defining the \( k \)'s. What would be more involved is if the \( k \)'s appeared mixed with the \( x \)'s. Link to post Share on other sites

mattiao 2 Posted January 25 Author Share Posted January 25 Dear Joigus, finally I have been working again on this topic after several weeks. While I confirm that with a system of 2 non linear equations and one parameter K, adding the condition of \[ \boldsymbol{\nabla}J = 0 \] works to find the maximum K for which the system has solution, when I try to apply it to a system of 3 equations, this method doesn't work. I do an example to work on it: \[ \begin{cases} 4x^3 - y + 4xy^2k = 0 \\ 4x^2y + 4y^3 - x - k = 0 \\ 2z + p = 0 \end{cases} \] First of all I have trying to iterate k and I found that the system has solution until \[ k<=6.9 \] resulting \[ x=0.0302, y=1.2008, z=-3.45 \]. Then I have calculated the Jacobian of this system: \[ J = \begin{bmatrix} 12x^2+4y^2k & -1+8xyk & 0\\ 8xy-1& 4x^2+12y^2 & 0 \\ 0 & 0 & 2 \end{bmatrix} \] Calculating the determinant of this I get \[ \boldsymbol{\nabla}J = 2(12x^2+4y^2k)(4x^2+12y^2)-2(-1+8xyk)(8xy-1) \] But if I add this equation to the above system, imposing it equal to zero, the system has not solutions. In fact substituting \[ x=0.0302, y=1.2008, z=-3.45 \] in the above equation, value is far from zero. Any idea? Link to post Share on other sites
