extracting magnesium


max.yevs
 Share

Recommended Posts

is it possible to extract magnesium from epsom salt (MgSO4) by electrolysis? i know that it is very hard to oxidize sulfate ion and in solution, water would much rather get split up then magnesium sulfate...



which is why im thinking, what if i put table salt in the solution along with it, i would assume 2NaCl + MgSO4 > Na2SO4 + MgCl2, which would then make magnesium plate the cathode when electrolysing.... i assume that if magnesium hydroxide tries to form, it would just get electrolized also



would this work? i'm very interested to handle magnesium.

Link to comment
Share on other sites

yes, that is one of the things i'm thinking might happen...

but even if magnesium hydroxide does form, it will get ripped back apart... i think this really depends on magnesium's reactivity

when electrolysing sodium chloride, the sodium does not even dream of plating the cathode, it will make NaOH...sodium is too reactive



so I don't know, is water a better oxidizer then a stream of electrons? and does magnesium react with cold water, unprovoked? the reactivity series chart says it only reacts with acids, but idk...


Merged post follows:

Consecutive posts merged

i did some research (and i know i should have done this before asking) and in fact electrolyzing MgCl2 from seawater is the major process for producing magnesium... :)



so if anything wouldnt work its 2NaCl + MgSO4 > Na2SO4 + MgCl2 but i think it should.


Merged post follows:

Consecutive posts merged

good thing about this is that magnesium sulfate is available at any pharmacy or superstore (epsom salt) and pure magnesium should be kind of fun to play around with (i hear it burns quite well)



ill post if it works


Merged post follows:

Consecutive posts merged

then again, maybe they meant commercially its by electrolysing molten magnesium chloride, not mgcl2 solution...



will have to test this... i think with enough electricity its possible to do it with solution...

Link to comment
Share on other sites

the trouble is that magnesium chloride and sodium sulfate are both soluble in water. What that means is that there is no reaction. all that happens is both your reactants will dissolve leaving you with four different ions floating about in solution. If one of the products were insoluble, a precipitate would be seen and u could isolate it.

Link to comment
Share on other sites

I would have suggested a single displacement reaction, however, magnesium is quite reactive, and the only more reactive metals, I can think of, are the alkali metals, as well as some of the alkali earth metals. an easy way to obtain magnesium, is through the body of pencil sharpeners, as those are either made from steel or magnesium, and from that point on, you can simply judge it by the weight. The blade, however, is always made of steel, so its best you remove it with a screwdriver. In regards to chemically producing it, with epsom salt, you can react the epsom salt, with ammonium hydroxide (ammonia + water solution), producing ammonium sulfate and magnesium hydroxide. (Yes, I know, same subtance as would be procured in your electrolysis, but you would obtain a better yield), which when heated, produces magnesium oxide... and then.... I have absolutely no idea, what to do. Best of luck!

Link to comment
Share on other sites

thanks, although i will probably have to try the reaction anyways out of my own curiosity



the trouble is that magnesium chloride and sodium sulfate are both soluble in water. What that means is that there is no reaction. all that happens is both your reactants will dissolve leaving you with four different ions floating about in solution. If one of the products were insoluble, a precipitate would be seen and u could isolate it.



yes, i realize that there would not be any actual reaction, but when you get Na+, SO4-2, Mg+2, and Cl-, trying to electrolyse it should be the same as electrolysing MgCl2, since the sodium and sulfate ions are harder to reduce/oxidize.



and thanks theo, ive considered trying to get magnesium hydroxide, magnesium oxide, and magnesium carbonate, but trying to decompose any would give magnesium oxide... which will probably be impossible to decompose, except maybe electrolysing :)



but i guess the only approach is to try it... just as soon as i get some epsom salt

Link to comment
Share on other sites

In regards to what has been said, firstly, one has to become careful of the electrodes you use, is this is how you're planning to attain magnesium, as while magnesium will precipitate into the solution, most metal anodes, will then react with the sulfate, for example, if you are using copper electrodes, the reaction would form magnesium and copper sulfate. The magnesium, now magnesium hydroxide, having been dissolved in water, would then displace the copper, and you would be left with copper hydroxide (which actually has quite a number of useful applications!) and magnesium sulfate. To summarise, using any metal, that is less reactive than magnesium, would simply lead to the reverse of the initial reaction, going nowhere. Due to this, I recommend you use carbon rod electrodes. For this, graphite will do. However, I have a feeling that the magnesium, would then become magnesium hydroxide, reacting with the water. But hey, you can't knock it, 'til you've tried it, right? Best of luck!



,theophrastus



ps: let us know the outcome. It may be quite interesting! (magnesium powder, could be quite useful)

Link to comment
Share on other sites

bought some epsom salt today... and set up the experiment, its still running



for the electrodes, i used two small steel plates... i'm actually very impressed with how well steel works for this... when i use copper electrodes, they quickly get corroded and stop working... i think its the carbon content...or better yet, the fact that iron doesn't passivate as much as copper...



I'm using pretty weak power, for now, 5volts/.55amperes....



anyways, one of the steel plates is actively bubbling... the other i cant see bubbling at all (although it might be bubbling very little and the gas dissolving)...



the one that's not bubbling is slowly turning a graphite like grey color- with no residue... the one that's bubbling (i think its bubbling hydrogen) has some white or silvery white deposits.... which means either silvery white magnesium or white and insoluble magnesium hydroxide...



its probably Mg(OH)2..., if so, ill try using more power... i.e. a small lead-acid battery or a bunch of 9v alkaline in series... im sure that with enough power you can plate magnesium onto the cathode...



To summarise, using any metal, that is less reactive than magnesium, would simply lead to the reverse of the initial reaction, going nowhere.



Yes, of course, but what if i take out the electrodes, one of which is hopefully plated with magnesium, before turning off the power? the higher electropositivity of magnesium would make it more willing to stay at the cathode, assuming enough power is provided...


Merged post follows:

Consecutive posts merged

yeah it was definitely insoluble magnesium hydroxide produced at the bubbling electrode, which was the cathode...and the bubbles were hydrogen, i assume... i'm surprised i did not get any chlorine or oxygen bubbles...





so i guess everyone was right... however i havent given up yet... i did find a tiny slice of magnesium on the side of the glass i was doing it in... (i think its magnesium because it burned very well, but idk how it got there)



Mg(OH)2 is electrolyzable, and i think with enough power I will be able to plate an anode with magnesium, and maybe, just maybe, prove wrong all those other magnesium threads...



if somehow i do get it to work, ill post some photos of the setup and results... maybe over the weekend


Merged post follows:

Consecutive posts merged

but it seems to me that since the electrodes are basically losing and gaining electrons, the cathode is like an oxidizer and the anode is a reducer...



so if enough electricity is supplied, the cathode's oxidizing potential should be higher than the oxidizing potential of the OH radical...



so, there is some truth to trying to electroplate a piece of metal with magnesium, which in essence means electrolysing a magnesium compound to make magnesium

Edited by max.yevs
Link to comment
Share on other sites

totally unrelated, but I just realised the answer to my previous problem in refining the magnesium oxide, to pure magnesium. If you are to heat the magnesium oxide with charcoal, the following reaction would ensue:



C + 2MgO > 2Mg + CO2



I really can't believe I didn't think of this earlier, having recently read some of isaac azimov's nonfiction books, regarding the history of chemistry. This was the primary method used by alchemists and metallurgists, to extract pure metals, from their respective oxide ores. It mentions it, in the context of copper, iron and tin, however, I can't see why it couldn't work for this. Best of luck in your electrolysis though. Tell us whether it was pure magnesium or magnesium hydroxide that formed. If the first, than your goal has been accomplished, if not, you can simply dehydrate the hydroxide to oxide, and then, do the above. Best wishes,



,Theophrastus

Link to comment
Share on other sites

I've given up on this magnesium extraction...



I hooked up several 9v batteries in series, to get a pretty decent voltage... enough to create very bright sparks... voltage in my case was 20 times more important than amperes...



Didn't work... some specks of magnesium may have formed on the cathode, but not any reasonable amount...



I'm sure with enough voltage, it could be done... I even know how much is needed... the amount of voltage produced from reaction of magnesium and free hydroxide... (which would take quite a few alkaline zinc-manganese dioxide reactions)



I'm sure I will try this again, when I happen to have a good enough power source lying around, but probably not anytime soon...



P.S. the electrolysis quickly created a very dense blue suspension... i suspect some kind of iron salt, since i was using steel electrodes. Anybody know what it is?

P.P.S. I'm very impressed with using steel as electrodes.

P.P.P.S. Please don't comment on how I'm doing this in my kitchen.

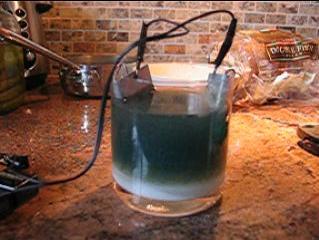

magnesium extraction.jpg

Link to comment
Share on other sites

i took another picture of the suspension, after i poured it in an improvised tray...



anyone know what it is?



im guessing some kind of iron salt, but i don't think its iron sulfate, i made iron sulfate before and it looks different...



it starting to rust a bit... pretty quick actually

iron salt.jpg

Link to comment
Share on other sites

overnight, the bluish green compound slowly turns a brilliant orange... perhaps iron oxide, but its a brighter orange than any rust i've ever seen.



i've given up on the magnesium a long time ago, i'm just interested as to what this complex is.

iron salt-orange.jpg

Link to comment
Share on other sites

a drop of hydrochloric acid makes the solution a clear bright green... (bottom of cup) looks very much like iron(II) chloride...



so... what is an iron compound that:



- Makes a dark bluish green suspension

- Turns into a brilliant orange overnight

- And the anion must be weaker then chloride so that it forms FeCl2 with HCl

iron salt- clear green.jpg

Link to comment
Share on other sites

ah, ok i know what happened.

Either the Cl2 or SO4 attacked the steel anode, creating some iron sulfate or chloride. Then the magnesium or sodium hydroxide that formed at the cathode reacted with the iron sulfate/ chloride.



So, im guessing the first picture is some kind of 'green rust' which apparently has the formula Fe(III)x Fe(II)y (OH)3x+2y-z (A-)z; where A- is Cl- or 0.5 SO4-2 ... anyways, something complicated.



Green rusts oxidize very easily to Fe2O3, so the second picture was just a high grade iron (III) oxide.



And i guess iron oxide reacts with hcl to form iron chloride and water.

Edited by max.yevs
