jacobs sipoh model

HANSCHETI
in Classical Physics

Featured Replies

Hi
I am not an Engineer or physicist this is something my idle mind came up with..

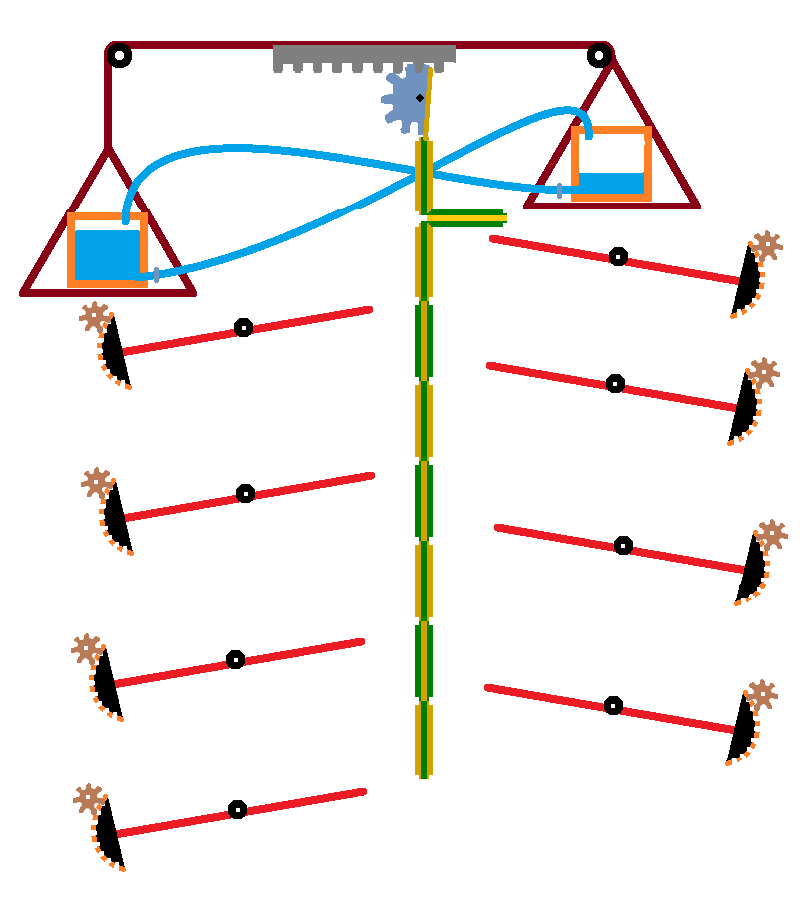

in the picture above you will see that two lever will move to container up and down when water/liquid in them is moved that will shift the gear left and right and that will rotate the gear 180 degree to start jobs ladder which will be turning the small gear which will be used to transfer the water from one bowl to another and even the weight from the lowering container can be used to do same

now i was wondering that since the water container does not need to place very far vertically will the siphon law and some use of the some gear say four of it be used to do so.....
