A current I1 carrying wire AB is placed near another long wire CD

carrying current I2. I1 is perpendicular ti I2.  If AB is free to move then it will move :
(A) Towards left (B) Towards Right
© Upwards (D) Downwards



  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#2 Sensei

Sensei

    Primate

  • Senior Members
  • 2,964 posts

Posted 22 December 2016 - 06:19 PM

Do you have two batteries f.e. 1.5V and two wires? Make experiment.. :)

You should see how they move.

Then swap +- polarization, and check again.


  • 1

#3 studiot

studiot

    Genius

  • Senior Members
  • 6,175 posts
  • LocationSomerset, England

Posted 22 December 2016 - 09:13 PM

Do you have two batteries f.e. 1.5V and two wires? Make experiment.. :-)

You should see how they move.

Then swap +- polarization, and check again.





Said it all, Sensei +1


  • 0

#4 swansont

swansont

    Evil Liar (or so I'm told)

  • Moderators
  • 35,255 posts
  • LocationWashington DC region

Posted 22 December 2016 - 09:37 PM

I don't see the correct answer listed
  • 1

Minutus cantorum, minutus balorum, minutus carborata descendum pantorum          To go to the fortress of ultimate darkness, click the up arrow ^

I am not a minimum-wage government shill.             Forget it, Jake — it's Crackpottown.

My SFN blog: Swans on Tea












#5 studiot

studiot

    Genius

  • Senior Members
  • 6,175 posts
  • LocationSomerset, England

Posted 22 December 2016 - 10:01 PM

I don't see the correct answer listed



I don't see a correct question asked either.



:-)



So I thought sensei's answer pretty imaginative and thoughtful.

Since we don't know where A, B, C or D are or which way L1 or L2 are flowing, and our answer options don't include a no effect option, suck it and see is the only sensible answer.


Edited by studiot, 22 December 2016 - 10:05 PM.

  • 0

#6 swansont

swansont

    Evil Liar (or so I'm told)

  • Moderators
  • 35,255 posts
  • LocationWashington DC region

Posted 22 December 2016 - 10:03 PM

I don't see a correct question asked either.

:-)

So I thought sensei's answer pretty imaginative and thoughtful.
Since we don't know where A, B, C or D are or which way L1 or L2 are flowing, suck it and see is the only sensible answer.

The current and field will be colinear. Cross product is zero for IL x B

Edit: I was not thinking of the proper geometry here
  • 0

Minutus cantorum, minutus balorum, minutus carborata descendum pantorum          To go to the fortress of ultimate darkness, click the up arrow ^

I am not a minimum-wage government shill.             Forget it, Jake — it's Crackpottown.

My SFN blog: Swans on Tea












#7 studiot

studiot

    Genius

  • Senior Members
  • 6,175 posts
  • LocationSomerset, England

Posted 22 December 2016 - 10:07 PM

The current and field will be colinear. Cross product is zero for IL x B



Since you posted this whilst I was busy polishing my own post, please see the last version.


  • 0

#8 Sriman Dutta

Sriman Dutta

    Molecule

  • Senior Members
  • 422 posts
  • LocationKolkata, India

Posted 23 December 2016 - 05:52 AM

Thanks for the response.

After a while, I realized that for AM, I can use right hand thumb rule to get the direction of magnetic field.

And then, I can use Fleming's left hand rule to get the direction of motion of CD. I did so and got that the wire CD shall move upwards.

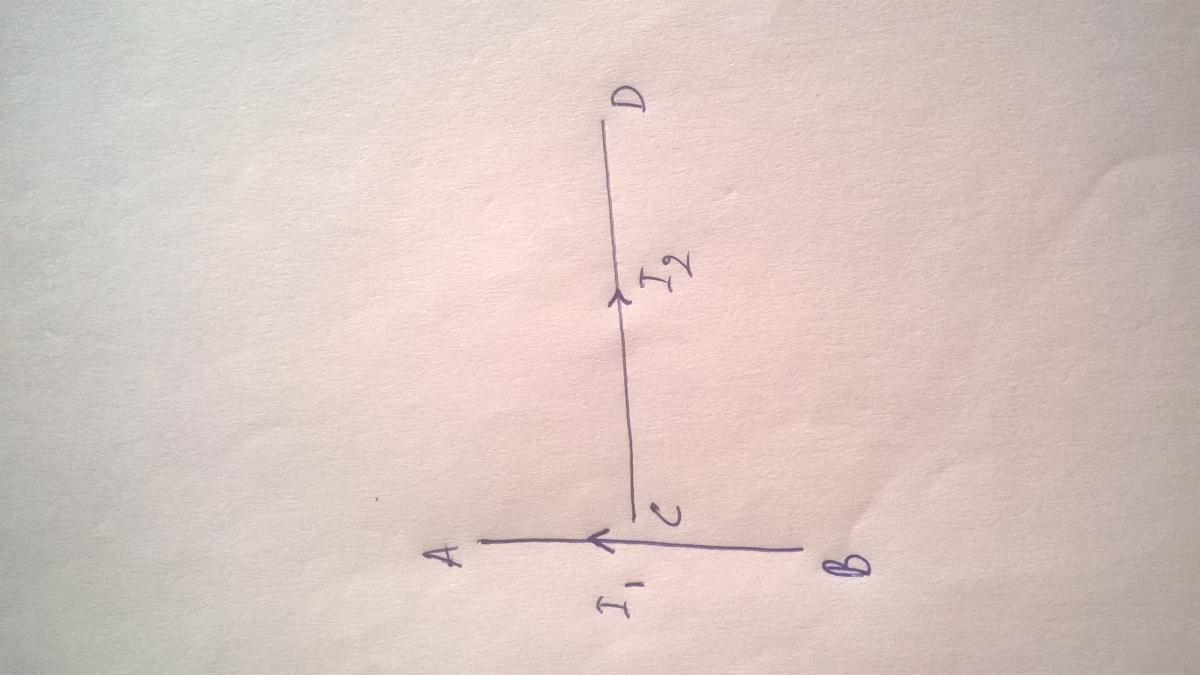

Here' the pic.

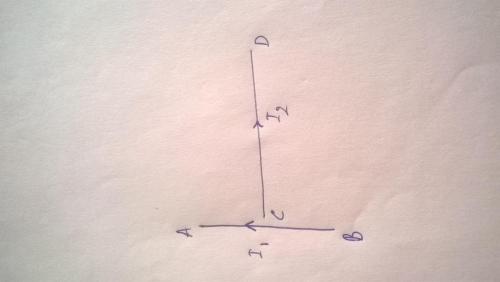

Attached Thumbnails

  • WP_20161223_11_15_46_Pro.jpg

  • 0
We are what we repeatedly do.
Excellence is then not an act but a habit.
-Aristotle

#9 swansont

swansont

    Evil Liar (or so I'm told)

  • Moderators
  • 35,255 posts
  • LocationWashington DC region

Posted 23 December 2016 - 12:16 PM

As you've drawn it, the field from CD is into the page on the right and out of the page on the left. The force is not upward for one of those. One could also argue that there is no field at all at AB (ideally, it's zero, but in reality there would be a field)

What if the current is in the other direction? That wasn't specified.

What if the wires are overlapping? No effect from the overlap point, and on opposite sides the force is in opposite directions. The wire would spin. What if they make an "L" shape?
